Scale Solar Sites: What Gets Set Before Panels Go In
Before a single solar panel goes into the ground, a survey crew has already walked the site more than once. Construction staking is the work that turns a design on paper into real points on the ground. It tells contractors exactly where each row, pile, and pad needs to sit. On a small rooftop job, this step barely matters. On a large solar field with thousands of panels, it decides whether the whole project comes together the way engineers planned it.
Construction Staking for Solar Array Rows and Tracker Foundations
A big solar site can have thousands of panels lined up in long rows. Each row depends on the one next to it lining up right. Even a small error at the start can throw off the whole layout by the time crews reach the far end of the field.

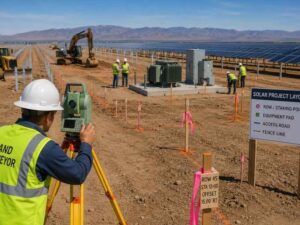

Survey crews set exact points for panel rows, tracker systems, and driven piles before any equipment shows up. These points come straight from the approved design. They give installation crews a clear path to follow.
Tracker foundations need extra care. Trackers move all day long to follow the sun. If a foundation sits even a little off from where it should be, the tracker won’t tilt the way it’s supposed to. Getting these points right from the start keeps the whole array working the way the design intended.
Setting Control Points for Inverters, Transformers, and Equipment Pads
Solar fields need more than just panels. Inverters, transformers, battery storage units, and switchgear all have to sit in exact spots that match the electrical design. These pieces of equipment often need concrete pads, clear paths, and set distances from other structures.
Construction staking marks out where each pad and unit belongs before any concrete gets poured. This keeps the equipment layout lined up with the site plan. It also gives electrical crews the reference points they need for cable runs and connections.
A transformer pad set in the wrong spot doesn’t just cause a headache later. It can mean redoing conduit runs, adjusting cable lengths, and losing days on a schedule that was already tight.
Staking Access Roads, Fence Lines, and Internal Site Circulation
A solar site isn’t just rows of panels. It needs roads for maintenance trucks, gates for entry, and fencing around the whole edge. All of this has to be planned out and marked before construction crews start moving equipment around.
Surveyors mark the planned paths for access roads and maintenance routes, along with fence lines and gate spots. This staking work helps contractors build these features without running into the array itself or blocking a path that equipment needs later.
Internal travel routes matter too. Crews and vehicles need a way to move through the site during construction without damaging panels or foundations that are already in place. Getting these lines staked early avoids problems once several crews are working on different parts of the site at the same time.
Establishing Grades for Drainage and Solar Site Earthwork
Solar sites often cover open land that needs grading before anything else can happen. Water has to drain away from equipment pads and foundations. The ground has to reach the exact height set out in the engineering plans.
Staking guides this earthwork. It marks cut-and-fill points, finished grades, and drainage swale locations across the site. Equipment pads need to sit at the right height too, since even a small grading error can leave water pooling near a transformer or inverter station.
Getting these heights right during the earthwork phase saves a lot of trouble later. Fixing drainage problems after equipment is installed is far harder than solving them before a single pad gets poured.
Verifying Layout Before Solar Panel Installation Begins
Even with careful staking early on, ground conditions can shift during construction. Grading work, heavy equipment traffic, and weather can all move or disturb staked points before installation crews arrive to set panels and foundations.
That’s why many contractors ask for a layout check before big installation phases begin, especially right after grading wraps up. A quick check confirms that key points still match the construction plans, which catches any shifts before panels start going in.
Frequently Asked Questions
What does a surveyor stake on a utility-scale solar project?
The scope depends on the project, but staking often covers panel rows, foundations, equipment pads, access roads, fencing, and drainage features shown on the construction plans.
When should construction staking begin on a solar site?
Staking usually starts alongside site prep work. Crews need the layout points in place before grading, foundation work, or equipment installation can move forward as planned.
Does every solar panel need its own survey stake?
Not always. It depends on the design, the contractor’s workflow, the equipment being used, and how tight the tolerances need to be. Surveyors often set control and reference points instead of marking every single panel.
Can construction staking help prevent solar array alignment problems?
Yes. Accurate layout points help contractors place rows, foundations, and equipment the way the design calls for. This lowers the chance of small errors adding up into bigger alignment problems across a large site.
Who decides the construction staking scope for a solar project?
The surveyor usually works with the civil engineer, electrical designer, general contractor, and project owner. Together, they set the required staking points and tolerances based on the approved plans and the construction schedule.
