Where Heavy Rain Meets Tidal Water, Drainage Can Stop Moving in Either Direction
Coastal drainage fails in a specific way. A topographic survey on low ground near tidewater has to measure differences that a person cannot see, because a few inches of relief decide whether water leaves a property or sits on it. Rain falls hard. The tide comes up. The pipe that normally carries runoff away has nowhere to send it, and the yard becomes a pond until the water outside drops again.
Measuring the Small Elevation Differences That Control Coastal Drainage
Flat ground is never truly flat. A lot that looks level in every direction can hold two feet of relief spread across two hundred feet, and every inch of that shapes where water goes. Standard mapping cannot capture it, since a two foot contour interval hides the whole story.
Crews collect dense spot elevations and work at intervals tight enough to show the pattern. That level of detail reveals the shallow high line that keeps water from reaching the ditch, or the slight dip beside the garage that collects it. Those features look like nothing during a site visit. They decide the outcome during a storm.
Locating Outfalls, Ditches, Pipes, and Tidal Connections
Water leaves a coastal lot through a system, and the survey has to map the whole thing. Ditches, swales, driveway culverts, yard drains, storm inlets and the pipes connecting them all get located, along with the elevations that matter most, which are the inverts.

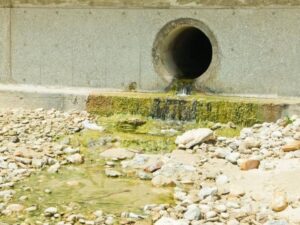

The outfall deserves the closest look. Where a pipe discharges, at what height and into what water body all determine how the system behaves when the tide rises. An outfall that sits below the high tide line will take water in rather than push it out, and the drawing has to show that clearly.
Recording Low Openings Around the Structure
Buildings flood through their lowest openings. The survey records the elevation of garage slabs, crawlspace vents, door thresholds, sliding glass tracks, equipment pads and any other place where water can enter. Those numbers give the design team a target to protect.
Comparing them against the surrounding ground shows the margin the owner actually has. A garage slab two inches above the driveway high point offers almost nothing. A door threshold eight inches above the nearest low spot offers a real cushion. Owners understand their exposure once they see those distances written down.
Showing Where Water Can Back Up Across the Site
Drainage on flat coastal ground runs both ways. Engineers need a surface that lets them model what happens when the downstream water rises and the system stops draining, and the survey supplies that surface.
The features that carry the most weight in this analysis include:
- outfall inverts and their height relative to normal and high water
- the low points where standing water collects first
- ridges and high lines that block flow toward the outlet
- the connection points between the property and any public system
- ground elevations at every opening into the building
With those measurements the engineer can trace how far a backup would spread and how deep it would get. That analysis needs real elevations, and estimates from a general contour map will not produce a usable answer.
Supplying a Surface for Drainage Design Rather Than Guesswork
Design work turns the survey into solutions. Engineers use the measured surface to size pipes, set grades, place swales, position check valves and decide whether the site needs a pump. Each of those choices depends on knowing the existing ground to within a fraction of a foot.
Guessing at those elevations produces improvements that fail during the first real event. A regrade that sends water toward a high point moves nothing. A pipe set at the wrong invert drains slowly or backs up. The survey removes the guessing, and the design that follows has a fair chance of working.
Frequently Asked Questions
Can a topographic survey show where tidal backup may affect a drainage outlet?
It provides the measurements that make the analysis possible, including the outfall invert and its relationship to the water body. The survey shows the elevations, and an engineer compares them against tide data to evaluate how the system behaves.
Is an Elevation Certificate enough to design drainage improvements?
No. That form records a handful of building elevations for flood documentation purposes, and it contains nothing about the yard, the ditches or the outfall. Drainage design needs a full topographic survey of the site and the ground around it.
Should the survey include nearby streets and adjoining low areas?
Usually yes. Water arrives from the street and moves toward the neighbors, so limiting the survey to the property line hides half of the system. The engineer normally sets how far the mapping should extend.
